METSEPM5330 : Power Meter 31st Harmonic RS485 Class 0.5S 2DI/2DO 35 Alarms Schneider by MAX POWER-SHOP

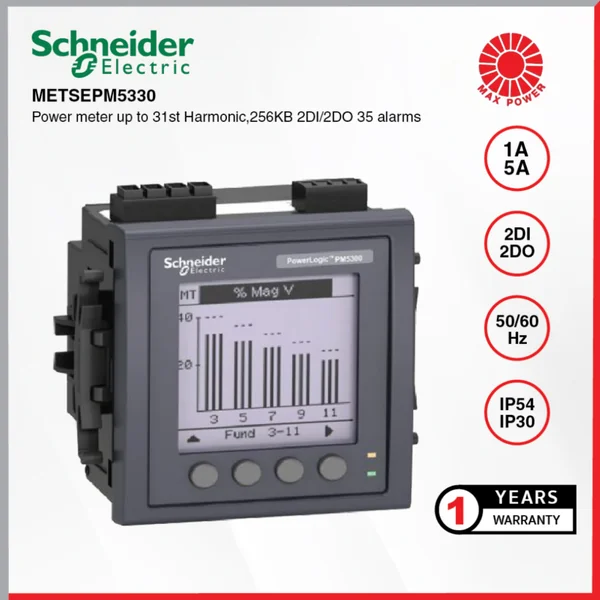

The Schneider Electric METSEPM5330 is an advanced power meter from the PowerLogic PM5000 series, designed for energy management and power monitoring applications. It offers a wide range of features suitable for monitoring energy consumption, power quality, and other electrical parameters in industrial, commercial, and utility installations.

Key Specifications:

1. General Features:

• Display: LED display for real-time data visualization.
• Accuracy: Class 0.5S for active energy measurement (compliant with IEC 62053-22).
• Mounting: DIN rail or panel mounting.
• Communication: Supports Modbus RTU (RS485) for integration into energy management systems.

2. Electrical Specifications:

• Voltage Input:
  • Measurement range: 50–300V (L-N) / 87–520V (L-L).
  • Frequency: 45–65 Hz.
• Current Input:
  • CT secondary: 1A or 5A.
  • Measurement range: 0.1% to 120% of nominal current.
• Power Supply: 110–415V AC or 125–250V DC.

3. Measured Parameters:

• Basic Measurements:
  • Voltage (phase-to-phase, phase-to-neutral).
  • Current (per phase and neutral).
  • Active, reactive, and apparent power (per phase and total).
• Power Quality:
  • Total Harmonic Distortion (THD) for voltage and current.
• Energy:
  • Active, reactive, and apparent energy (imported/exported).

4. Alarming and Logging:

• Programmable alarms for over/under voltage, overcurrent, and other conditions.
• Data logging for key parameters.

5. Environmental:

• Operating temperature: -25°C to +55°C.
• Humidity: 5–95% non-condensing.
• Degree of protection: IP52 (front panel), IP30 (rear).

6. Compliance:

• Meets IEC 61557-12 standards for performance and accuracy.
• UL and CE certified.

Applications:

• Energy monitoring for industrial plants, commercial buildings, and utilities.
• Integration into building management systems (BMS).
• Load monitoring and optimization.
