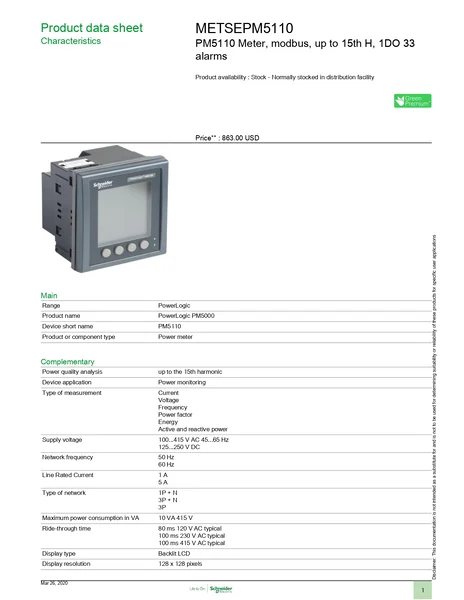

METSEPM5110 : Power meter up to 15th Harmonic LCD RS485 class 0.5S 1DO 33 Alarms Schneider by MAX POWER-SHOP

General Specifications

• Model: METSEPM5110
• Type: Power meter
• Mounting: Panel-mounted with a compact design
• Display: Backlit LCD for real-time monitoring
• Communication: No built-in communication port (basic model without network connectivity)

Electrical Characteristics

• Measurement Accuracy:
  • Voltage: ±0.5% of reading
  • Current: ±0.5% of reading
  • Active Energy (Class): Class 0.5S (IEC 62053-22)
• Input Voltage:
  • Direct: 100 to 277 V AC L-N / 173 to 480 V AC L-L
  • With PTs (Potential Transformers): Up to 1 MV
• Input Current:
  • Nominal: 1 A or 5 A (via CTs)
  • Range: 0.1 to 6 A
• Frequency: 45 to 65 Hz
• Power Supply: 110 to 415 V AC or 125 to 250 V DC

Monitoring and Measurement

• Parameters Measured:
  • Voltage (L-N, L-L)
  • Current (per phase and average)
  • Active, reactive, and apparent power
  • Power factor and frequency
  • Energy (active, reactive, apparent)
• Display Units: Configurable for kW, MW, kWh, etc.

Features

• Harmonics: THD (Total Harmonic Distortion) measurement for voltage and current
• Alarming: Configurable alarms for thresholds on various parameters
• Energy Profiles: Basic energy consumption tracking

Environmental Conditions

• Operating Temperature: -25°C to +70°C
• Storage Temperature: -40°C to +85°C
• Humidity: 5% to 95% non-condensing
• Ingress Protection: IP54 (front panel), IP30 (body)

Standards and Certifications

• Compliance: IEC 62053-22, IEC 61557-12, UL 61010-1
• Safety: Double insulated for safety

Applications

• Ideal for commercial and industrial energy monitoring, load management, and cost allocation. Its basic model is suitable for applications where network connectivity is not a priority.
